Ellsworth Coercion - Force

Ditch the quiver.

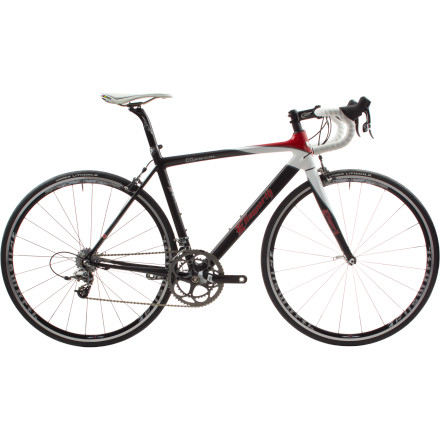

Image of Ellsworth Coercion - Force

Average Product Reviews Average Rating 3 Stars (1 Review)

Ellsworth Coercion - Force:

Every weekend is a totally different race, suited for a different type of rider, and a different kind of bike. You want to race them all. Whether it's a twitchy crit, a grueling hillclimb, or battle of attrition at the annual century race, the Ellsworth Coercion is your ticket to a summer of racing the way you want to race. Let the SRAM Force component build guide your criterium attacks and last-lap sprints, as it strikes the perfect balance of crisp, race-day performance and season-after-season reliability. Take flight up the hills the following weekend, as the Coercion weighs in under 7 kilograms right out of the box, while remaining stiff and responsive as you confidently scream down the canyons. And what would your race season be without pushing your physical limits during long hours on the bike? The Coercion's race-bred geometry remains comfortable, while smoothly soaking up road chatter, so you'll always have another 'next weekend' to look forward to.

  • Rare Earth Carbon fiber manufactured in an environmentally sustainable facility certified to provide clean air and proper disposal of carbon dust. Plus, it's light and stiff as hell
  • Ellsworth AL Road wheelset is optimized for high-mileage training, but isn't too heavy to get dirty on race day

Features:

Frame Material:
Rare Earth high modulus carbon fiber
Dropout Type:
vertical
Headset:
1.125 in
Steer Tube Type:
carbon fiber
Fork:
Ellsworth Lev 1
Fork Material:
carbon fiber
Fork Blade Shape:
straight
Wheelset:
Ellsworth AL Road
Front Derailleur:
SRAM Force
Front Derailleur Mount:
34.9 mm clamp-on
Rear Derailleur:
SRAM Force
Shifters:
SRAM Force
Crankset:
SRAM Force
Chain Rings:
39 x 53 t
Crank Arm Length:
172.5 mm
Bottom Bracket:
SRAM GXP
Brake Levers:
SRAM Force
Brake Calipers:
SRAM Force
Handlebar:
Zipp Contour SL tb
Handlebar Width:
40 cm
Bar Tape:
SRAM Pit Stop
Stem:
Zipp Service Course SL
Stem Length:
90 mm
Stem Angle:
6 deg
Chain:
SRAM PC-1051
Cassette:
SRAM PG 1070
Rear Sprocket Range:
12 - 25 T
Tires:
Michelin Lithion.2
Tire Size:
700 C x 23 mm
Seatpost:
Zipp Service Course SL
Seatpost Diameter:
31.6 mm
Seatpost Length:
350 mm
Seat Collar:
Ellsworth
Saddle:
Ritchey WCS
Weight:
6.9 kg
Measured Effective Top-Tube Length:
520 mm
Manufacturer Warranty:
(register with Ellsworth within 30 days of purchase) 2 years

Sizing Chart:

Ellsworth

Coercion
XS S M L
Head Tube Angle 72.5deg 73deg 73.5deg 74deg
Seat Tube Angle 74.5deg 73deg 72deg 72.5deg
Bottom Bracket Height 10.8in
(27.5cm)
10.8in
(27.5cm)
10.8in
(27.5cm)
10.8in
(27.5cm)
Top Tube20.5in
(52cm)
21.7in
(55cm)
23.0in
(58.5cm)
23.2in
(59cm)
Standover28.3in
(72cm)
29.5in
(75cm)
31.5in
(80cm)
32.3in
(82cm)
Chainstay16.1in
(41cm)
16.1in
(41cm)
16.1in
(41cm)
16.1in
(41cm)
Seat Tube19.3in
(49cm)
20.5in
(52cm)
21.7in
(55cm)
22.8in
(58cm)
Head Tube4.3in
(11cm)
5.5in
(14cm)
6.9in
(17.5cm)
7.7in
(19.5cm)
Wheelbase38.2in
(97cm)
38.8in
(98.5cm)
39.4in
(100cm)
39.6in
(100.5cm)

More Photos:

Black/White/Red, M

Reviews:

Rating for this product: 3

apf2927393 (0)
February 8, 2012

strange geometry

because it's not clear in the product page, this is a 2010 model (the only year, i believe, that ellsworth made this) with full 2010 sram force group. first, some info about me: 5'10", 32" inseam, 155 lbs, 100 miles per week, rode a 56cm 2005 C'dale CAAD8 with Dura Ace 7800. now, onto the review. the important stuff: 1) the top tube is LONG. pay close attention to the size chart and order accordingly. these bikes have weird geometry. the medium has a 58.5cm top tube, which is pretty gigantic for a bike with a 55cm seat tube. it gets even more confusing because it is a sloping top tube. to compare: my "56cm" CAAD8 only has a 54cm top tube and is generally considered to be a "medium" frame. after reviewing the sizing chart AFTER i received my medium frame, i now realize i ought to have ordered the small coercion instead. d'oh. 2) cracks in the finish. bought it off bonktown for ~$2200, which was a pretty good deal for a "hi mod" with full force build. service and delivery was excellent, it was packaged well, as usual for real-cyclist/bonktown. however, i noticed what appear to be cracks in the frame finish--namely, a 3 incher on the left side of the head tube and a small crack on the the external edge of the drive-side headtube cable stop for the rear derailleur. my hunch is this isn't a big deal, as i don't believe there's any pressure on the cracked part. but you never know, and it, along with the other headtube finish issue definitely curbed the endorphin rush of my newest consumer indulgence. 3) despite the sizing and frame issues, i took her for a spin around the neighborhood anyway. and she likes to go really fast really smoothly. at least compared to my aluminum '05 CAAD8. and the experience of going downhill is a weird, exhilerating experience, something both terrifying and extremely comfortable. force does the ride right; the positive feedback and swift actuation is something to behold after coming from dura ace 7800. oh, and this bike is LIGHT. the ellsworth website says the red-equipped coercion weighs 14.4 lbs out of the box; i estimate mine is around 15.5 lbs. the minor stuff: 1) as advertised on real cyclist, it comes with a 90mm stem. not true, at least for the unit delivered to me. it came with a 100mm stem, which aggravated the long top tube issue. luckily i had a 90mm stem handy. 2) also, and this isn't a negative or anything, but the rear derailleur cable needed some tightening. expected with a few days of cable stretch. luckily, the bonktown/realcyclist wrench left me plenty of room with the barrel adjusters to tighten up the slack. finally: if you were wondering why ellsworth no longer makes these bikes, here's an email, straight from the company: "We moved away from road because it is not our core competency. We are a small manufacturer and due to our capitol restraints we have learned that we must remain focused on what we do best. To truly be successful in the road category it must be promoted with demos, ideally a team, etc. We do not have the resources, at this point, to do this promotion in both the mountain and road categories. This certainly may change in the future, but this is where we are today." my buddy's theory* follows: "As for the Ellsworth… I’d approach that one carefully. They’ve been making mountain bikes for years, and in their mid-2000’s heyday were actually highly regarded for their suspension designs. As bikes have evolved, Ellsworth seem to be stuck in a bygone era of gaudy anodized color schemes and obnoxious suspension linkages. In a word: antiquated. That road bike smacks of “Ooh! Oooh! Look, we make road bikes, too! Over here rich roadie guys!” A clear cut “me too” product; the death throes of a company whose market share is being quickly absorbed by the TrekCialized juggernaut." *said buddy is a semi-pro mtb racer, former bike mechanic of 8 years, and professional grouch i still think it's a fairly good deal for a good bike with funky geometry. get it in the right size!!
