Yeti Cycles SB-66 Carbon Race Complete Mountain Bike

Superbike, indeed.

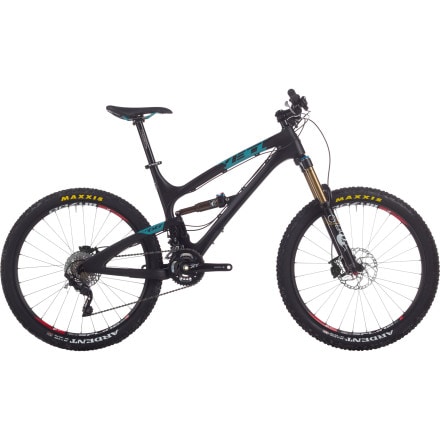

Image of Yeti Cycles SB-66 Carbon Race Complete Mountain Bike

Yeti Cycles SB-66 Carbon Race Complete Mountain Bike:

We must admit, we had high expectations when our friends in Golden Colorado announced the Superbike. You see, Yeti has been pushing the limits of mountain bike design for almost three decades, and the SB-66 Carbon Race Complete Mountain Bike is a culmination of those efforts. But our expectations were exceeded when we finally swung a leg over one. With a six pound frame offering six inches of travel, its arrival pretty much established a new class of mountain bike. And the aggressive geometry? Perfection, if such a thing exists. We’d have to agree with Yeti, this puppy is in every way deserving of the Superbike moniker.

At the core of the SB-66’s beloved handling is Yeti’s proprietary Switch Link suspension platform. On the surface, it looks like most any single pivot bike, but thanks to the eccentric pivots, the wheelpath and suspension kinematics are that of a short dual link suspension design, as found on the SB’s closest competition. The benefit of a dual link design is that it enables the wheelpath to be optimized for particular tasks in different portions of the travel. Namely, the wheelpath stays near vertical early in the travel, providing a responsive feeling at the pedals, and keeping the chainstays short for quick handling. As the bike compresses past the sag point, the axle travels rearward, keeping the bike responsive to large impacts, and providing a smooth ride on incredibly rough terrain.

If this seems like marketing-driven hyperbole, perhaps you’ll prefer race results. Yeti factory rider Jared Graves piloted his SB-66 carbon to a win at the Crankworx stop of the Enduro World Series, and thanks to stage wins throughout the season, he took second place in the overall against some truly fearsome competition. As if that weren’t enough, with the help of his SB-66, Graves also placed himself on the podium at the 2013 Downhill World Championships in Pietermaritzburg RSA, the only person on a short-travel bike to be a serious contender. There but a few bikes that will remain composed at those speeds, while providing the efficiency necessary to compete at the very highest level of the sport. In other words, the SB-66 is backed by a pedigree that few, if any, can match.

Part of the SB-66c’s overall quickness can be attributed to its stiff, lightweight, carbon fiber chassis. At six pounds with a shock, this is one of the lightest six inch travel bikes available. But don’t think for a minute that it gives up one iota of strength or stiffness. With thoughtful tube forming, a tapered head tube, and the massive bearings afforded by the Switch Link, this bike won’t flinch when you throw it into turns at wide-open speeds. Better yet, the svelte frame weight keeps even robust builds under 30 pounds, meaning that you don’t need superhuman fitness to enjoy the climb to the top.

While the SB-66’s geometry looks somewhat extreme on paper, we’ve found that in reality, it has us questioning why other manufacturers are taking so long to follow suit. You’ll find that the effective top tube lengths are roughly an inch larger per size than many of its competitors. The reason being is that Yeti intends the SB-66 to be ridden with a shorter stem, and the longer cockpit provides the same reach you’ll already be used to. With a relaxed head angle and fairly short stays, the bike rewards an over-the-bars riding style, but most riders find that they adopt this aggressive posture naturally, without so much as a moment’s consideration. In other words, we’d recommend that you follow Yeti’s recommended sizing chart, rather than sizing down, as some have suggested.

Yeti’s Race build gives you everything you need to pull the ’66 out of the box and rip. Suspension duties are handled by Factory Series FOX units, specifically a 160mm travel FLOAT 34 up front, and a FLOAT CTD out back. Both employ FOX’s Kashima coating, for reduced friction and a supple ride, and thanks to the Yeti factory team’s partnership with FOX Racing Shox, you’re assured a setup that’s as dialed as they come. The drivetrain and brakes both come from Shimano’s workhorse XT group, with a double-chainring crankset, Shadow+ clutch-equipped rear derailleur, and the phenomenal XT brakeset. The stem and seatpost are Thomson items, while the cockpit is rounded out with an Easton Havoc carbon fiber bar, and a Yeti branded WTB saddle. It rolls on a DT 350 XM wheelset, wrapped in Maxxis tires. While it’s not included, you may want to consider is a dropper seatpost.

The Yeti SB-66 Carbon Race Complete Mountain Bike is available in four sizes, from Small to X-Large, and in the colors Carbon/gray and Carbon/turquoise.

Features:

Frame Material:
carbon fiber
Suspension:
Switch Technology
Rear Shock:
FOX FLOAT CTD Kashima
Rear Travel:
152 mm
Fork:
FOX 34 FLOAT 26 FIT CTD Trail Adjust Kashima
Front Travel:
160 mm
Headset:
Cane Creek
Shifters:
Shimano XT (10-speed)
Front Derailleur:
Shimano Deore XT
Rear Derailleur:
Shimano Deore XT Shadow+
Crankset:
24-38 t Shimano Deore XT
Bottom Bracket:
Shimano
ISCG Tabs:
removable ISCG mount
Pedals:
n/a
Cassette:
Shimano XT
Chain:
Shimano XT
Brake Set:
Shimano XT
Rotors:
XT SM-RT76
Handlebar:
Easton Havoc Carbon
Grips:
Yeti lock-on
Stem:
Thomson 4X
Saddle:
Yeti Branded WTB
Seatpost:
Thomson Elite
Seat Collar:
Yeti clamp-on
Wheelset:
DT Swiss 350 XM LTD
Tires:
Maxxis
Recommended Use:
enduro and ripping trails
Manufacturer Warranty:
2 years on frame

Sizing Chart:

Yeti Cycles

Geometry Chart



SB-66 Carbon
FOX 34 150mm Travel Fork


Seat Tube

(c-t)

Effective Top Tube

(eTT)

Stand Over

Head Tube

(HT)

Head Tube Angle

(HTo)

Seat Tube Angle

(STo)

Bottom Bracket Height

(BBH)

Chainstay

(CS)

Wheelbase
XS 14.8in 22.2in 27.0in 3.7in 66.7o 71.7o 13.5in 17.0in 43.1in
S 16.5in 23.2in 27.9in 4.9in 66.7o 71.7o 13.5in 17.0in 44.2in
M 18.0in 24.2in 28.3in 4.9in 66.7o 71.7o 13.5in 17.0in 45.2in
L 19.5in 25.2in 29.4in 5.5in 66.7o 71.7o 13.5in 17.0in 46.3in
XL 21.0in 25.9in 30.2in 6.3in 66.7o 71.7o 13.5in 17.0in 47.1in

Yeti Cycles SB-66 Carbon Geometry Chart

More Photos:

Carbon/Turquoise, XL
Carbon/Grey, XL
