BMC Trailfox TF01/SRAM X0 Complete Bike

Own the trail.

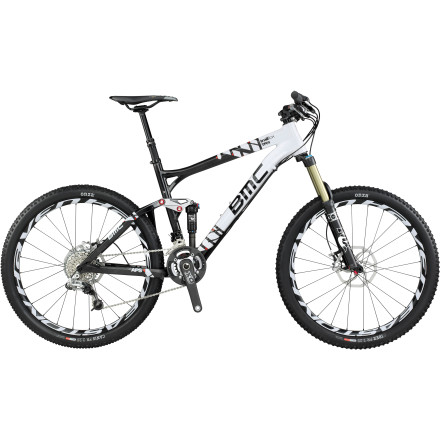

Image of BMC Trailfox TF01/SRAM X0 Complete Bike

BMC Trailfox TF01/SRAM X0 Complete Bike:

The BMC Trailfox TF01 X0 2013 Complete Mountain Bike gives you a trail-shredding, long travel package, thatís still easy to handle thanks to its lightweight carbon fiber frame. And with a proven SRAM X0 drivetrain and Fox suspension, thereís not much that this trail machine wonít handle with aplomb.

The TF0101 uses unidirectional carbon fiber throughout. Unidirectional carbon is notoriously difficult to work with, but is advantageous since each layer can be oriented so that the fibers are perfectly aligned to distribute stresses in the frame as outlined by the Finite Element Analysis (FEA) in the design lab. By doing so, BMC makes the frame as light as possible while retaining strength and stiffness where it's needed most.

Stroke is controlled using BMC's patented Advanced Pivot System rear suspension. It's essentially a mini-link rear suspension that creates a floating pivot. By positioning the floating pivot relative to the chainrings, the APS suspension maintains the efficient pedaling characteristic that world class riders demand from a high-performance trail bike. The Trailfox offers a generous 150mm of rear wheel travel damped by a Fox Float CTD shock. It's air sprung and has an external adjustment for rebound damping and a two-position (on or off) ProPedal lever for adding low speed compression damping if needed on long climbs or non-technical terrain.

This particular TF01 is runs on a SRAM X0 drivetrain, as well as the proven X0 brakes. Suspension duties are handled by FOXís Evolution series, with a Float CTD rear shock, and a travel-adjustable 32 TALAS RL fork. Eastonís Haven line supplies the stem, and carbon handlebar, while the seatpost is a Rockshox Reverb Stealth dropper post crowned with a Fi:ziík Tundra saddle. The wheels are tubeless-compatible Easton Havens, wrapped in Onza tires.

The BMC Trailfox TF01 X0 2013 Complete Mountain Bike is available in three sizes, from Small, to Large, and in the color White.

Features:

Frame Material:
carbon fiber
Suspension:
APS
Rear Shock:
FOX FLOAT CTD Evolution
Rear Travel:
150 mm
Fork:
FOX 32 TALAS CTD FIT Performance
Front Travel:
150 mm
Shifters:
SRAM X0
Front Derailleur:
SRAM X0
Rear Derailleur:
SRAM X0 Type2
Crankset:
24/38 t SRAM X0
Bottom Bracket:
SRAM GXP
Pedals:
not included
Cassette:
11-36 SRAM X0
Brake Set:
SRAM X0
Handlebar:
Easton Haven Carbon
Stem:
Easton Haven
Saddle:
Fi'zi:k Tundra 2 manganese
Seatpost:
Rock Shox Reverb Stealth
Wheelset:
DT Swiss M1800
Tires:
Onza Ibex/Canis
Tire Size:
26 in x 2.25 in
Recommended Use:
all mountain
Manufacturer Warranty:
3 years

Sizing Chart:

BMC Racing

Geometry Chart



Trailfox TF01/TF02 (150mm fork)


Seat Tube

(c-t)

Effective Top Tube

(eTT)

Stack

(S)

Reach

(R)

Head Tube

(HT)

Head Tube Angle

(HT°)

Seat Tube Angle

(ST°)

Bottom Bracket Drop

(BBD)

Chainstay

(CS)

S 16.5in 22.2in 22.4in 15.8in 4.9in 67.5° 73.5° -0.4in 16.9in
M 17.7in 23.2in 22.8in 16.7in 5.3in 67.5° 73.5° -0.4in 16.9in
L 19.5in 24.2in 23.8in 17.4in 6.3in 67.5° 73.5° -0.4in 16.9in

Geometry Chart

More Photos:

White, S
